In the realm of welding, achieving high-quality welds is essential for structural integrity and performance. However, various defects can compromise the integrity of welds, including lack of fusion and undercut.
While both defects can compromise the quality of the weld, they have distinct characteristics, causes, and implications. This article aims to provide a detailed and professional comparison between lack of fusion and undercut in welding.
Definition of Lack of Fusion

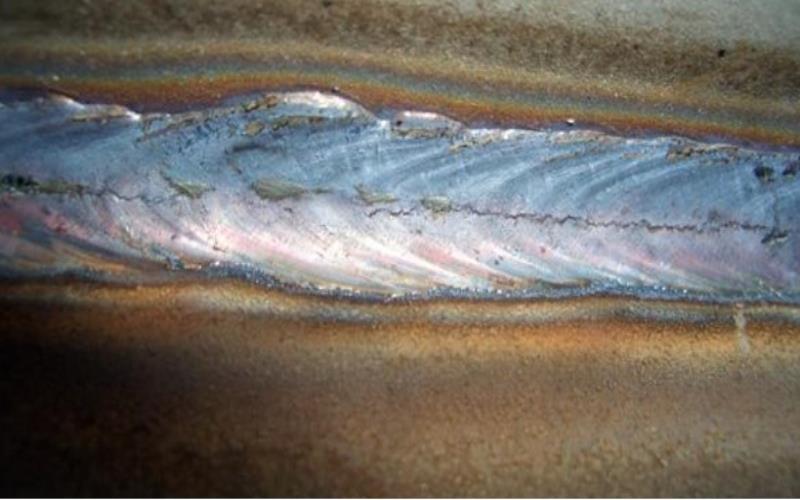

Lack of fusion, also known as incomplete fusion, lack of fusion refers to a condition where the base metal fails to fuse properly with the weld metal, resulting in a gap or discontinuity at the interface between the two. Lack of fusion can manifest as unfilled craters, incomplete penetration, or poor sidewall fusion.
The key characteristic of lack of fusion is the presence of unmelted base metal at the interface between the weld metal and the base metal. This can be observed visually as a lack of fusion line, which should be continuous and uniform in a properly executed weld. Lack of fusion can occur at the root, middle, or surface of the weld, depending on the specific conditions during welding.
Lack of fusion is often difficult to detect visually, as it does not produce obvious surface defects. Therefore, it is essential to employ non-destructive testing methods such as radiography or ultrasonic inspection to detect and evaluate lack of fusion defects.
Causes of Lack of Fusion
The primary causes of lack of fusion are insufficient heat input and improper welding technique. Insufficient heat input can result from using too low a welding current or voltage, or moving the welding torch too quickly. This fails to melt the base metal sufficiently, leaving unmelted portions at the interface. Improper welding technique, such as incorrect torch angle or incorrect electrode positioning, can also lead to lack of fusion.
Additionally, contamination of the weld area can contribute to lack of fusion. Dirt, rust, oil, or other impurities on the base metal surface can prevent the weld metal from properly wetting and bonding with the base metal.
Definition of Undercut
In contrast to lack of fusion, undercut refers to a groove or recess that occurs along the toe of the weld. The result is a thin or weakened section at the weld toe, reducing the overall strength of the weld joint.

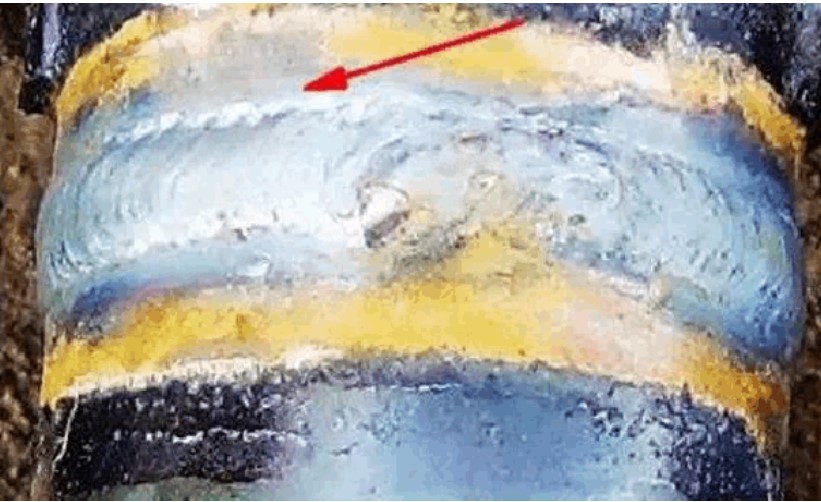

The characteristics of welding undercut are relatively easy to identify visually. It manifests as a concave groove or indentation along the weld toe, extending into the base metal. This defect can be observed visually and is often accompanied by a lack of weld metal fill in the affected area. Undercut can occur at any point along the weld joint, but is most commonly seen at the start and end of the weld.
Causes of Undercut
The primary causes of undercut are excessive heat input and improper welding technique. Excessive heat input, such as using too high a welding current or voltage, or moving the welding torch too slowly, can lead to excessive melting of the base metal at the weld interface. If the weld metal is not properly applied to fill this melted area, undercut will occur.
Improper welding technique, such as incorrect torch angle or incorrect electrode positioning, can also contribute to undercut. Incorrect torch angle can result in the welding arc concentrating on a small area of the base metal, causing excessive melting. Incorrect electrode positioning can prevent the weld metal from properly filling the melted area at the weld interface.
Difference of Fusion and Undercut
Lack of fusion involves the absence of a complete bond between the weld metal and base material, while undercut refers to a groove or recess along the weld toe.
The primary cause of lack of fusion is insufficient heat input during the welding process. This can be attributed to low welding current, fast welding speed, or insufficient penetration of the weld metal. Contamination of the weld zone, such as the presence of oxides or other impurities, can also contribute to lack of fusion.
In contrast, undercut is primarily caused by excessive melting of the base metal due to incorrect welding parameters or technique. Excessive welding current, long arc length, or improper welding angle can all lead to undercut defects.
Both phenomena can significantly compromise the structural integrity and service life of the weldment.
Conclusion
In summary, understanding the causes, detection methods, and rectification techniques for these defects is essential for producing high-quality welds and ensuring structural integrity in various welding applications. By addressing these issues effectively, welders can minimize the occurrence of defects and optimize weld quality.
