Reverse biasing is a technique used in semiconductor devices to control the current flow. It involves applying an opposite voltage to the normal bias voltage applied to the semiconductor junction. This technique is used to reduce the current flow and increase the resistance of the device. In this process, the width of the depletion region increases, leading to an increased resistance and a decrease in current flow.
Reverse Biasing: Overview

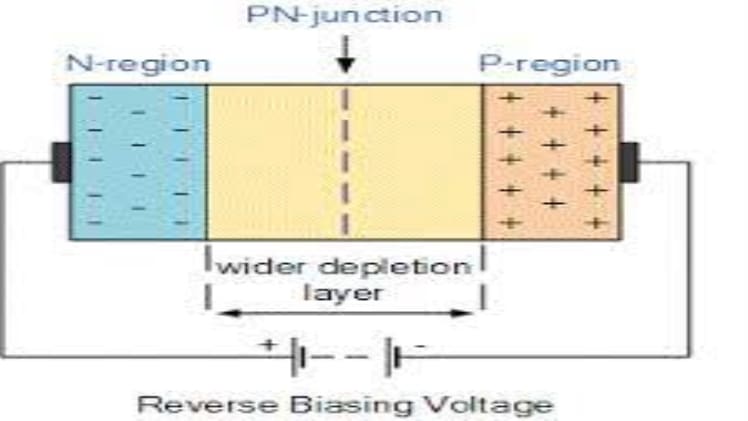

Reverse biasing is the process of applying a reverse voltage to the semiconductor junction. This is done by connecting the p-type and n-type materials in a diode with the reverse voltage applied. This technique is used to control the current flow through the device. When the reverse voltage is applied, it creates a wider depletion region which causes a greater resistance and thus reduces the current flow.
Width of Depletion Region
The width of the depletion region is determined by the magnitude of the reverse voltage applied. As the reverse voltage increases, the width of the depletion region also increases. This increases the resistance of the device and reduces the current flow. The reverse voltage can also be used to adjust the width of the depletion region to increase or decrease the resistance of the device.
The width of the depletion region is also affected by temperature. As the temperature increases, the width of the depletion region decreases, leading to an increased current flow. This can be used to regulate the current flow in the device and can be used to adjust the operating characteristics of the device.
Reverse biasing is an important technique used to control the current flow in semiconductor devices. It involves applying an opposite voltage to the normal bias voltage, which increases the width of the depletion region. This increases the resistance of the device and reduces the current flow. The width of the depletion region can also be affected by temperature, which can be used to adjust the operating characteristics of the device.
